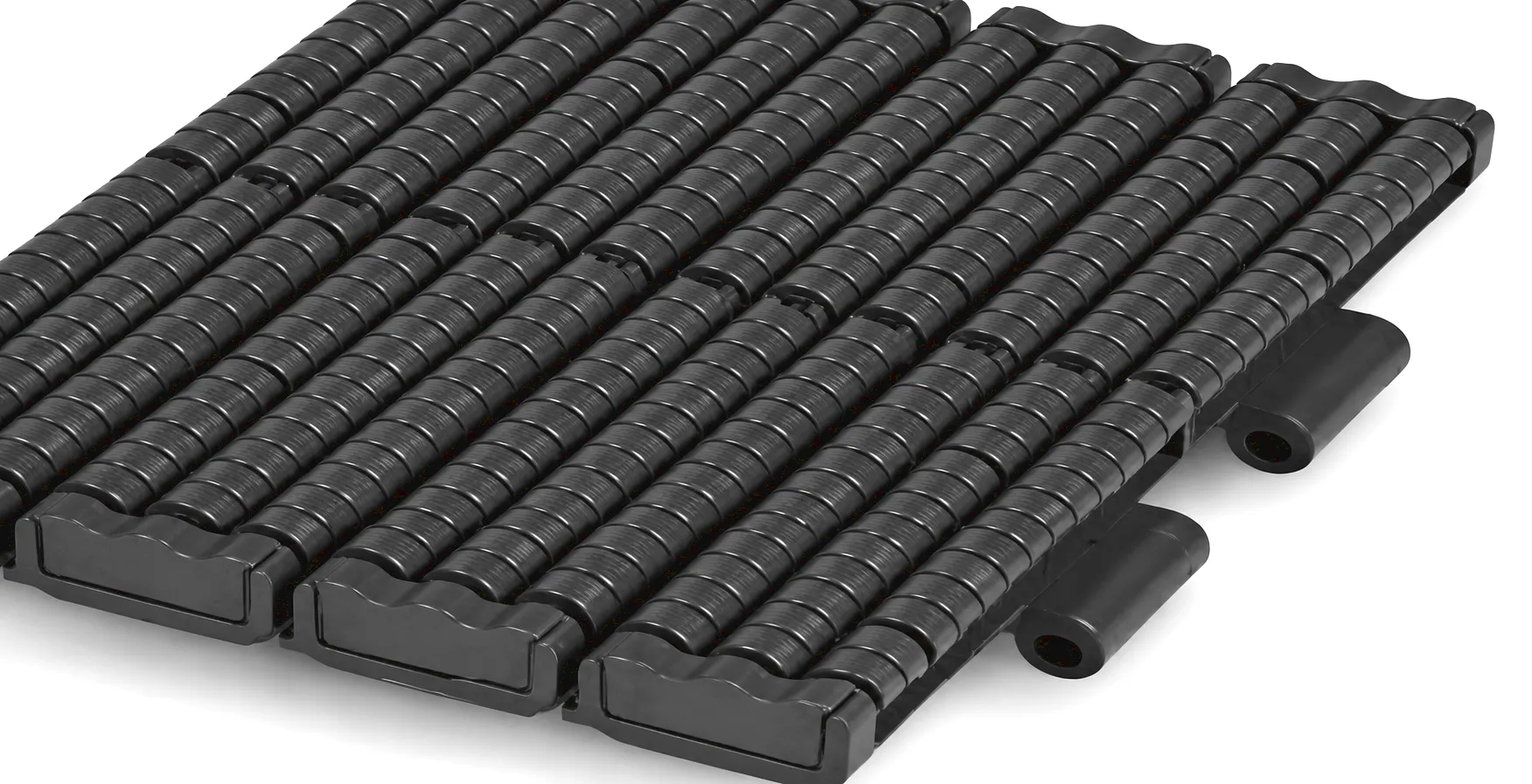

821 Heavy Duty Sideflex Run
Single Hinge Roller Chain
Industrial-grade plastic modular belt engineered for heavy-load side-flexing conveyor systems — trusted by manufacturers across the UK and Europe.
What Is the 821 Heavy Duty Sideflex Run Single Hinge Roller Chain?
The 821 heavy duty sideflex run single hinge roller chain is a purpose-built plastic modular belt designed for conveyor systems that demand both lateral flexibility and high load-bearing capacity. Unlike conventional flat-top belts, this belt incorporates a single hinge roller construction that allows the chain to navigate curves, bends, and complex conveyor paths without compromising structural integrity. It is particularly well-suited to sectors where continuous-operation reliability is non-negotiable — including food processing, automotive component handling, logistics sorting lines, and packaging operations across the United Kingdom and wider Europe.
Manufactured from XLG-grade thermoplastic material, the belt delivers a working load capacity of up to 2750 N at 21°C, with a pitch of 38.1 mm and a minimum backflex radius of 230 mm. These values place it firmly in the premium segment of plastic modular belt technology, meeting the rigorous demands of UK-based production environments where downtime directly impacts profitability. Three width variants — 190.5 mm, 254 mm, and 304.8 mm — give engineers the flexibility to match the belt precisely to their conveyor frame width and throughput requirements.
What distinguishes this particular plastic modular belt from lighter-duty alternatives is the heavy-duty sideflex running geometry. The hinge rollers reduce friction at contact points with sprockets and wear strips, extending service life considerably in wet, dry, or mixed-environment installations. For UK procurement managers sourcing conveyor belting solutions that balance performance, hygiene compliance, and total cost of ownership, the 821 series merits serious consideration.
Why UK Manufacturers Choose the 821 Sideflex Belt
Heavy-Load Single Hinge Roller Design
The single hinge roller architecture distributes load evenly across the belt width, minimising point stress and significantly reducing wear on both the belt and the conveyor frame components — a critical advantage in 24/7 production environments.
True Sideflex Capability
Designed to run smoothly through curved conveyor sections without binding or excessive lateral stress. This makes the 821 plastic modular belt an ideal choice for spiral systems, accumulation tables, and any layout where the product path is not perfectly linear.
Wide Temperature Operating Range
Rated for continuous operation between 4°C and 64°C in both dry and wet conditions. This breadth makes the belt suitable for chilled food handling, ambient-temperature packaging lines, and light thermal processing applications.
XLG Material — Engineered for Durability
The XLG thermoplastic compound offers superior impact resistance, chemical resilience, and dimensional stability under prolonged mechanical stress. It resists common cleaning agents used in UK food-grade and industrial washdown procedures.
Three Standard Widths Available
Available in 190.5 mm, 254 mm, and 304.8 mm chain widths, allowing precise matching to existing conveyor frames. Custom widths and surface configurations can be discussed directly with our technical team for bespoke UK conveyor projects.
Αντικατάσταση μονάδας χωρίς εργαλεία
The modular construction means individual belt sections can be replaced without removing the entire belt from the conveyor — reducing maintenance windows and keeping UK production lines running with minimal disruption during scheduled servicing.
Technical Specification
The table below lists the complete, unmodified factory specifications for the three standard models of the 821 series plastic modular belt. All load values are measured at 21°C in accordance with standard testing protocols. Engineers specifying this belt for UK conveyor projects should refer to these figures when calculating drive requirements and structural support loads.
| Belt Type | Chain Width (mm) | Pitch (mm) | Backflex Radius Min (mm) | Working Load Max (N @ 21°C) | Working Temp Dry (°C) | Working Temp Wet (°C) | Weight (Kg/m) | Belt Material |
|---|---|---|---|---|---|---|---|---|
| 821-K750-LBP | 190.5 | 38.1 | 230 | 2750 | 4 – 64 | 4 – 64 | 5.6 | XLG |
| 821-K1000-LBP | 254 | 38.1 | 230 | 2750 | 4 – 64 | 4 – 64 | 7.1 | XLG |
| 821-K1200-LBP | 304.8 | 38.1 | 230 | 2750 | 4 – 64 | 4 – 64 | 8.3 | XLG |

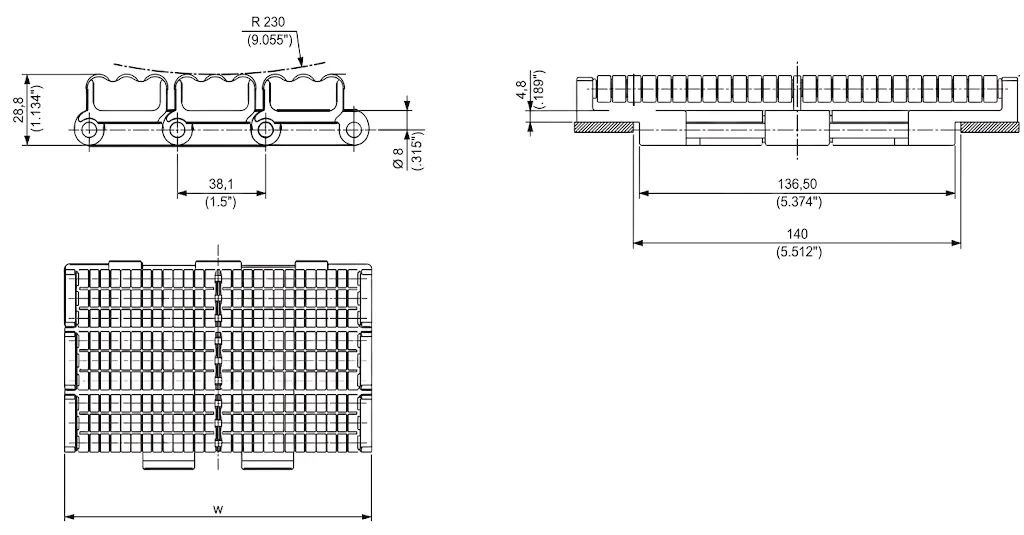

Technical Drawing — Dimensional Reference
How It Works: Principle, Material and Application Scenarios
Operating Principle
The 821 belt operates on the interlocking modular hinge principle, where individual thermoplastic modules connect via stainless steel or thermoplastic hinge rods to form a continuous belt surface. The embedded roller at each hinge point reduces sliding friction to rolling friction — a fundamental difference that lowers drive motor power requirements and extends wear-strip service life. The sideflex geometry is achieved by slight angular clearances in the module moulding, allowing the assembled belt to navigate lateral curves with a minimum radius of 230 mm without creating torsional stress that would otherwise cause premature fatigue cracking in the hinge areas.
XLG Material Properties
XLG is a high-performance thermoplastic polymer grade selected for its outstanding tensile strength, resistance to hydrolysis, and low coefficient of friction against steel wear surfaces. It performs consistently across the 4°C to 64°C operational window — covering chilled distribution centres in Glasgow and Leeds through to warmer ambient packaging lines in southern England. XLG does not absorb moisture, which means dimensional stability is maintained even during high-pressure washdown cycles — a practical requirement for any UK food production facility operating under Food Standards Agency guidelines. The material is also resistant to common lubricants and belt cleaning detergents.
Typical Application Scenarios
In the United Kingdom, the 821 heavy duty sideflex run single hinge roller chain is routinely specified for poultry and meat processing conveyors where wet conditions and heavy product weight combine to stress lighter belts beyond their design limits. It is equally effective in canning and bottling lines where lateral curve transitions are common in the bottling hall layout. Automotive parts manufacturers in the Midlands use similar belt configurations for component washing and drying tunnel conveyors, where chemical resistance and load capacity must coexist. Logistics hubs operating parcel sorting carousels also benefit from the sideflex characteristic when routing packages around curved divert sections.
Customer Success Stories
Scottish Poultry Processor Eliminates Unplanned Belt Downtime
A mid-sized poultry processing facility near Stirling, Scotland, was experiencing belt failures every six to eight weeks on its curved transfer conveyor — a stretch of line that moved between 1.8 and 2.2 tonnes of product per shift. The original woven fabric conveyor belt could not handle the combination of lateral curve loading, persistent moisture, and the aggressive caustic wash used during daily sanitation. Conveyor downtime averaged four hours per failure event, creating measurable throughput losses during peak production periods.
After consulting with our UK technical sales team, the facility retrofitted the curved transfer conveyor with the 821-K1000-LBP plastic modular belt — the 254 mm width unit with 38.1 mm pitch and XLG construction. The installation was completed during a scheduled weekend maintenance window with no additional conveyor frame modifications required. Over the subsequent twelve months of monitored operation, the facility recorded zero unplanned belt replacements on that conveyor section. Planned module inspection intervals were extended from six weeks to five months based on observed wear rates.
“We run three curved conveyor sections in our bottling hall and the 821 belt has performed without issues through two full production seasons. The sideflex movement through the bends is smooth and we’ve had no tracking problems since installation.”
“Lead time was shorter than we expected and the technical documentation made it straightforward to size the belt correctly for our frame. The XLG material handles our cleaning chemistry without any signs of swelling or surface breakdown after six months of daily washdown.”
“We compared quotes from three suppliers before choosing Ever-Power for this plastic modular belt project. The price was competitive and the team answered every technical question we had about load calculations and minimum bend radius. Would recommend for UK buyers.”
Factory Capabilities & Custom Belt Solutions
Our manufacturing facility operates with precision injection moulding lines dedicated to plastic modular belt production, maintaining strict dimensional tolerances across all standard and custom belt configurations. For UK customers with non-standard conveyor widths, surface texture requirements, or colour coding needs, we offer a full product customisation service that covers module geometry, rod material selection, surface finish, and belt width increments. Our engineering team works directly with UK conveyor OEMs and end-users to develop belt configurations that meet site-specific performance targets — including bespoke backflex radii for particularly tight curve layouts and reinforced hinge designs for applications exceeding standard working load thresholds.
Quality control is embedded throughout production — every batch of 821 series belts undergoes dimensional verification, tensile testing on sample hinge connections, and visual inspection for surface defects before despatch. Documentation packages including material certificates and dimensional inspection reports are available on request for UK customers requiring traceability records for their quality management systems.
Related Plastic Modular Belt Products
If your conveyor application involves magnetic side-flexing requirements or different chain configurations, the following products from the same plastic modular belt range may be of interest to UK conveyor designers and procurement teams.
1060 Magnetic Side-Flexing Single Hinge Chain
A magnetic variant of the side-flexing single hinge design, ideal for applications where magnetic product retention or separation is needed alongside lateral curve capability in the conveyor path.
1050 Magnetic Side-Flexing Single Hinge Chain
A narrower-pitch magnetic side-flex belt option suited to applications requiring tighter product spacing control with the inherent navigational flexibility of the single hinge roller chain construction.
