820 Series · Plastic Modular Belt Components
820 Sprocket Drive Wheel
High-precision plastic modular belt sprocket engineered for reliable conveyor drive performance across food processing, packaging, and logistics applications throughout the United Kingdom.
Home › Conveyor Components › Sprocket Wheels › 820 Sprocket Drive Wheel

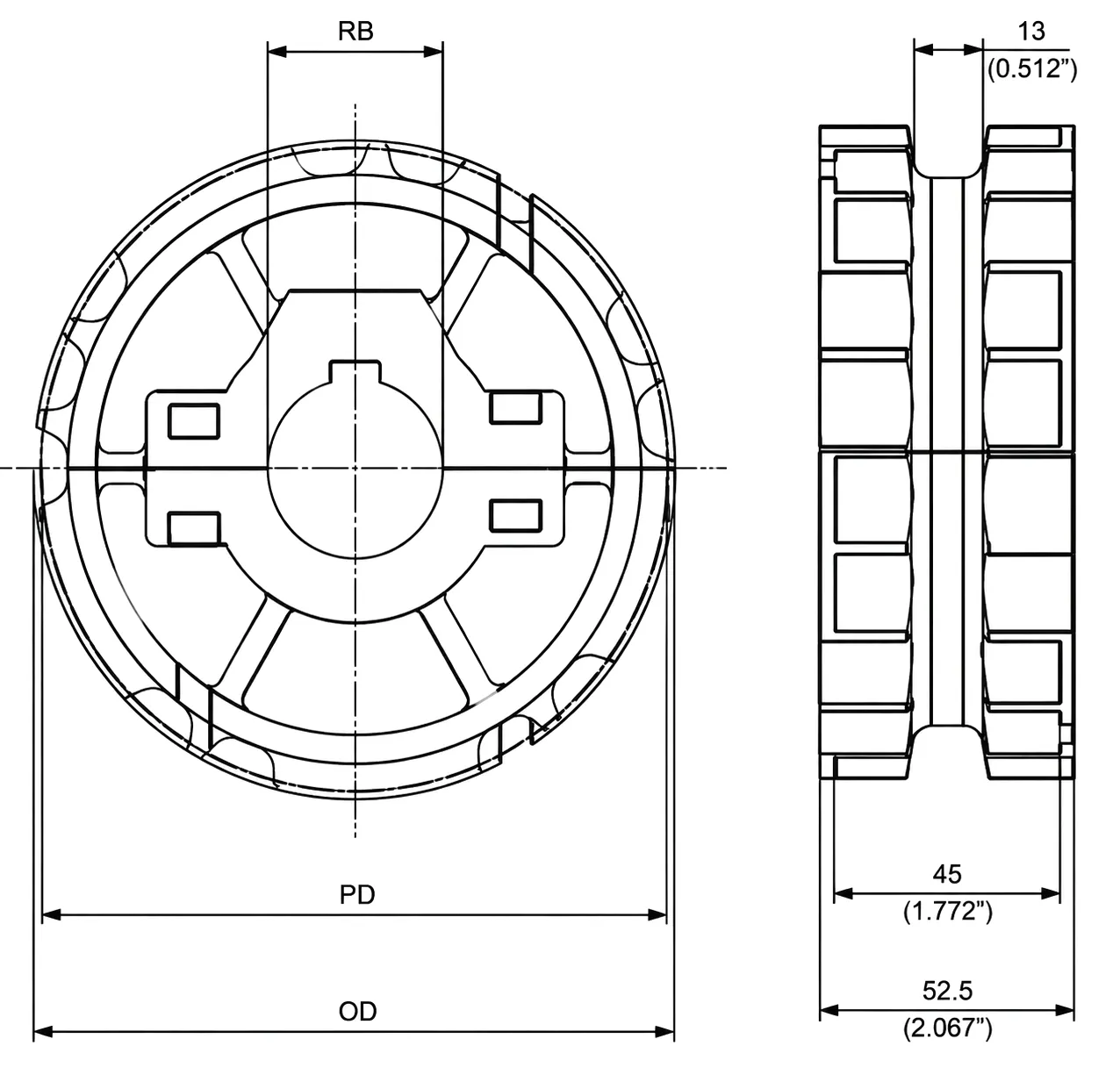

820 Series Sprocket Drive Wheel — Machining/Injection Moulded
Designed for demanding industrial conveyor systems, the 820 Sprocket Drive Wheel delivers precise meshing with modular plastic belts, combining engineering-grade polymer resilience with dimensional accuracy that keeps production lines running without interruption.
The 820 Sprocket Drive Wheel is a core drive component in modular plastic belt conveyor systems, purpose-built to transfer rotational force from the drive shaft directly into reliable belt movement. Whether you are running a high-throughput poultry processing facility in Yorkshire, a biscuit production line in the West Midlands, or a parcel sorting hub serving Greater London, the 820 series delivers the consistent engagement geometry that modern belt systems demand. Each sprocket is manufactured to exact pitch diameter tolerances, ensuring smooth belt tracking and minimal wear over extended operational cycles. Available in 19T, 21T, 23T, and 25T tooth configurations, and accommodating bore sizes of 25, 30, 35, and 40 mm, the wheel integrates with a broad range of shaft standards without modification to your existing drive assemblies. The combination of bore flexibility and standardised outside diameters makes line changeovers faster and component sourcing significantly more predictable across multi-site UK manufacturing operations.
🔧 Bore: 25–40 mm
🎯 OD: 117–154.2 mm
⚙ Machining / Injection
Technical Specifications
Complete dimensional data for all standard 820 Sprocket Drive Wheel models. Non-standard configurations available on request — contact our UK sales team.
⚠ If the sprocket requires a non-standard model, please contact our sales team to discuss custom configurations.
How It Works: Drive Principle & Material
Engineering insight into the 820 sprocket’s operational mechanics and polymer construction.
Drive Engagement Principle
The 820 sprocket transmits torque by meshing its precisely machined teeth directly with the drive rod holes in the modular plastic belt. As the shaft rotates, each tooth pocket captures a belt rod, pulling the belt forward in a positive, slip-free motion. This positive engagement eliminates the speed variation found in friction-based systems, making the 820 sprocket particularly valuable in applications where accurate belt positioning is critical — such as portioning conveyors in food manufacturing or timed merge systems in UK warehousing operations. The uniform pitch diameter across each tooth count variant ensures consistent belt speed regardless of which tooth configuration is selected for your line layout.
Polymer Material & Construction
820 Sprocket Drive Wheels are produced from engineering-grade acetal (POM) or polyamide (PA) polymers depending on application requirements. Both grades offer low moisture absorption, excellent dimensional stability across a temperature range of approximately -40°C to +90°C, and a self-lubricating surface that drastically reduces the need for external lubrication on the belt contact zone. The acetal variant is the standard choice for food contact environments, meeting the hygiene requirements common in UK BRC-certified food factories. Units are available as machined components for high-precision bore tolerances or as injection-moulded parts where volume pricing and weight reduction are the priority. Surface hardness and impact resistance are maintained even after prolonged wash-down cycles with hot water and approved cleaning chemicals.
Typical Application Scenarios
- Food processing lines — poultry, fish, bakery, dairy (UK BRC-compliant facilities)
- Pharmaceutical packaging conveyor drives
- E-commerce fulfilment and parcel sorting systems
- Automotive component washing and assembly lines
- Bottling and canning plant accumulation conveyors
- Logistics cross-belt and tilt-tray sortation hubs
- Industrial laundry and textile handling equipment
Why UK Engineers Choose the 820 Sprocket Drive Wheel
Performance advantages that translate directly to lower total cost of ownership on your conveyor system.
Precision Tooth Geometry
Tight OD and PD tolerances ensure positive belt engagement with no skipping or belt drift, reducing unplanned downtime on high-speed lines.
Extended Service Life
Self-lubricating polymer surface dramatically cuts wear rate against belt rods, delivering operational life that competes with stainless steel in many environments at a fraction of the weight.
Flexible Bore Options
Four bore sizes (25 / 30 / 35 / 40 mm) in every tooth count mean you can standardise on a single sprocket model across multiple drive shafts in your facility.
Competitive Total Cost
Lower acquisition cost versus metal alternatives, combined with reduced lubrication and maintenance expenditure, delivers measurable savings over a 12-month maintenance cycle.
Υγιεινός Σχεδιασμός
Smooth tooth profiles and open geometry prevent product entrapment, supporting CIP and wash-down regimes in BRC Grade A food factories and pharmaceutical GMP environments.
Fast Delivery to the UK
Stocked standard models available for air freight despatch, with road freight consolidation options for larger orders destined for UK distribution centres or manufacturing sites.
Complete Your Conveyor Drive System
The 820 Sprocket Drive Wheel works in conjunction with the following 1775 series components for a full drive and return configuration.

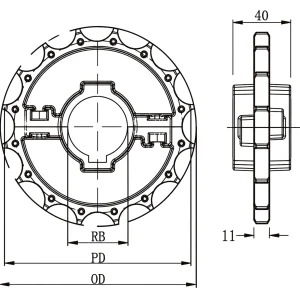

1775 Sprocket Drive Wheel
High-torque drive sprocket engineered for the 1775 series modular belt, offering broader shaft compatibility and increased load ratings for heavy-duty conveyor applications.

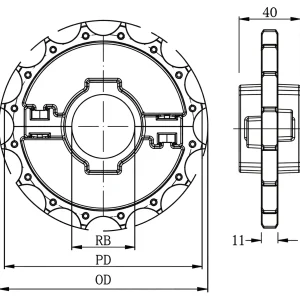

1775 Sprocket Idler Wheel
Passive return-end sprocket for the 1775 series belt, maintaining belt tension and alignment through return runs without adding load to the drive motor.
Manufacturing & Custom Engineering
Tailored Sprocket Solutions for Demanding UK Lines
Our production facility operates precision CNC machining centres alongside high-cavity injection moulding tooling, giving us the flexibility to serve both prototype development and high-volume production runs from the same supply chain. When a standard 820 Sprocket Drive Wheel does not match your shaft size, belt width, or material requirements, our engineering team can develop a bespoke variant within your timeline. We have delivered custom non-standard bore sizes outside the 25–40 mm range for specialist automation equipment, modified tooth profiles for high-speed indexing applications, and alternative polymer grades with enhanced chemical resistance for facilities handling aggressive wash-down agents. Our technical team in China liaises directly with conveyor OEMs and maintenance engineers across the United Kingdom, Europe, and beyond, providing dimensional drawings, material datasheets, and physical samples before committing to production. Lead times for custom machined sprockets are typically 7–15 working days from drawing approval, and injection-moulded custom tooling projects are managed end-to-end with full DFM review.
Custom Capability Highlights
Non-standard bore diameters beyond catalogue range, including keyway and set-screw configurations
Custom tooth counts for non-standard belt pitch or indexing conveyor requirements
UHMW-PE, PVDF, or antistatic compounds for specialist environments
White-label and OEM branding available for equipment manufacturers and distributors
Flexible minimum order quantities — from single prototype to full pallet quantities
Customer Success: Real Results from UK Industry
Verified outcomes from conveyor operators who switched to 820 Sprocket Drive Wheels across British manufacturing and logistics facilities.
Reducing Unplanned Stoppages by 38% at a West Midlands Poultry Processing Plant
Brindley Foods Ltd., Wolverhampton — Conveyor Maintenance Manager, 2024
Background: Brindley Foods operates three high-throughput evisceration and portioning lines running 16 hours per day. The facility had been using a domestic-sourced steel sprocket that required frequent re-lubrication every 48 hours to prevent corrosion and belt wear. Wash-down chemicals were accelerating corrosion on tooth faces, leading to uneven belt engagement and belt misalignment events roughly every 11 days on each line.
Solution: Working with our UK technical contact, the maintenance team trialled the 820-23T-ZD variant with a 40 mm bore across their main drive stations. The acetal grade was selected for its BRC food safety compliance and self-lubricating surface, eliminating the lubrication schedule entirely. Custom keyway machining was applied to match their existing shaft standard without retooling the drive assembly.
Result: Over six months of operation, unplanned conveyor stoppages linked to sprocket wear or belt tracking fell by 38%. The elimination of twice-daily lubrication saved an estimated 12 maintenance hours per line per month. ROI on the sprocket upgrade was realised within the first production quarter.
“We replaced our entire sprocket set on the chilled logistics sorter with the 820 series. Lead time from China was faster than expected, and the technical drawings they provided matched our shaft specs perfectly. Twelve months in, no issues.”
National Parcel Sortation Hub — Milton Keynes, UK
“Price per unit is very competitive compared to what we were sourcing locally. The 820-21T-ZD with 30 mm bore fits our biscuit line drives exactly. We’ve now standardised this sprocket across four of our UK factories.”
Bakery Products Manufacturer — Reading, Berkshire, UK
“The custom 35 mm bore option saved us a full shaft modification on our pharmaceutical packaging line. Response from the sales team was prompt and the dimensional drawings were accurate first time. Will be ordering again.”
Pharmaceutical Packaging Facility — Macclesfield, Cheshire, UK
Συχνές ερωτήσεις
Common questions from UK engineers and procurement teams about the 820 Sprocket Drive Wheel.
Ready to Source 820 Sprocket Drive Wheels for Your UK Operation?
Send your specification, quantity, and delivery address for a formal quotation. Standard and custom configurations available. Technical support included.
📧 Λάβετε μια προσφορά — [email protected]
Typical response within 1 business day | Technical drawings available on request | Sample units available | edit by gzl
