Flat Top Straight Run Belt
with Side Guards
Engineered for heavy-duty straight-path conveying in food, packaging, and industrial environments across the UK — where containment, hygiene, and precision throughput are non-negotiable.
Ready to discuss your conveyor requirements? Our UK-experienced engineering team is on hand.
What Makes This Belt Different from Standard Flat-Top Designs
The Flat Top Straight Run Belt with Side Guards goes beyond conventional flat-top conveyor belts by incorporating integrated lateral containment directly into the modular structure. In UK manufacturing and food-processing facilities — where line space is tight and product loss carries real cost — this design eliminates the need for separate guide rails or add-on containment strips. The result is a cleaner installation, faster sanitation cycles, and fewer points of mechanical failure across high-cycle production environments.
Built on the 5935-FT-DB platform, this plastic modular belt uses XLG-grade engineering thermoplastic modules precision-moulded to interlock under dynamic load. The flat carrying surface keeps delicate or irregularly shaped products stable during transit, while the raised side guards prevent lateral drift — a common source of product damage and line stoppages in beverage, bakery, and pharmaceutical packing lines.
Explore Our Straight Run Belt Range
Flat Top Straight Run Conveyor Belt
A smooth, level carrying surface ideal for stable, flat-based products moving in a straight path. Widely used in UK food processing, packaging, and light assembly operations requiring consistent product orientation.
Grid Straight Run Conveyor Belt
An open-grid configuration designed for drainage, airflow, and wash-down applications. Ideal for chilled produce, seafood, and vegetable washing lines where liquid clearance underneath the belt is essential.
Why UK Manufacturers Choose This Belt
Performance advantages confirmed across food, pharma, and packaging lines in Britain
Integrated Side Containment
Moulded side guards are part of the belt module — not bolted-on accessories. They maintain positional accuracy even at elevated line speeds without adding dead weight or snagging points.
Wide Temperature Tolerance
Rated for 4°C to 65°C in both dry and wet conditions, this belt handles chilled-food packing halls and hot-process environments without dimensional distortion or module cracking.
High Working Load Capacity
A maximum working load of 13,000 N at 21°C gives production managers confidence when running dense, heavy-packaged goods — glass bottles, canned products, or bagged grains — without risk of belt fatigue.
Tool-Free Module Replacement
The modular design means individual sections can be swapped on the line in minutes. UK maintenance teams report significantly shorter downtime per service event compared to monolithic belt systems.
Hygiene-Compliant Construction
XLG-grade thermoplastic resists fat, oil, mild acids, and alkaline cleaning agents used across British food factories. The smooth flat surface reduces biofilm harbourage points — a critical requirement under UK HACCP guidelines.
Custom Width Assembly
Standard assembly widths follow the W=76.2×N formula, meaning virtually any practical belt width can be achieved by combining modules. Non-standard widths are available on request — simply contact our sales team with your conveyor frame dimensions.
How It Works: Material, Mechanics & Application Fit
The structural integrity of the 5935-FT-DB belt originates from its XLG-grade thermoplastic formulation. XLG (Extra Load Grade) engineering plastic is compounded for superior tensile strength, creep resistance under sustained dynamic load, and dimensional stability across the belt’s rated temperature envelope. Unlike POM (acetal) or standard PP belts, XLG material maintains its interlock geometry even after thousands of operating hours — a feature that translates directly into longer service life and fewer unexpected line stoppages.
The 19.05 mm pitch is a globally standardised conveyor module pitch that interfaces with standard sprocket geometries across major conveyor frame manufacturers active in the UK market. This universality simplifies retrofit projects: if you are replacing a worn legacy flat-top belt on an existing frame, the 5935-FT-DB is almost always a drop-in compatible choice, reducing re-engineering costs substantially.
Food & Beverage
Confectionery wrapping, ready-meal portioning, glass bottle conveyance, and canned goods accumulation. The side guards prevent product spillage while the flat surface keeps packs upright through tray-sealing stations.
Pharmaceutical & Personal Care
Blister pack, tablet tub, and bottle transfer between filling and labelling stations. The non-particulating XLG surface and easy strip-down for CIP (clean-in-place) cycles meet GMP facility requirements common across UK pharma sites.
Logistics & E-Commerce Fulfilment
Parcel and poly-bag sorting conveyors in UK distribution hubs. The high working load handles dense cartons, and the contained carrying path keeps lightweight polybags from sliding off the belt edge under scanner readers.
Industrial Manufacturing
Component part transfer in automotive sub-assembly and electronics manufacturing. The flat top provides a controlled, vibration-dampened surface; side guards prevent small parts from falling into machine bases.
The backflex radius of just 25 mm is another performance highlight. A small minimum backflex radius allows the belt to wrap tightly around small-diameter return rollers, enabling more compact conveyor frames — a real advantage in UK factories where floor space is at a premium and conveyor footprint directly affects production layout flexibility.

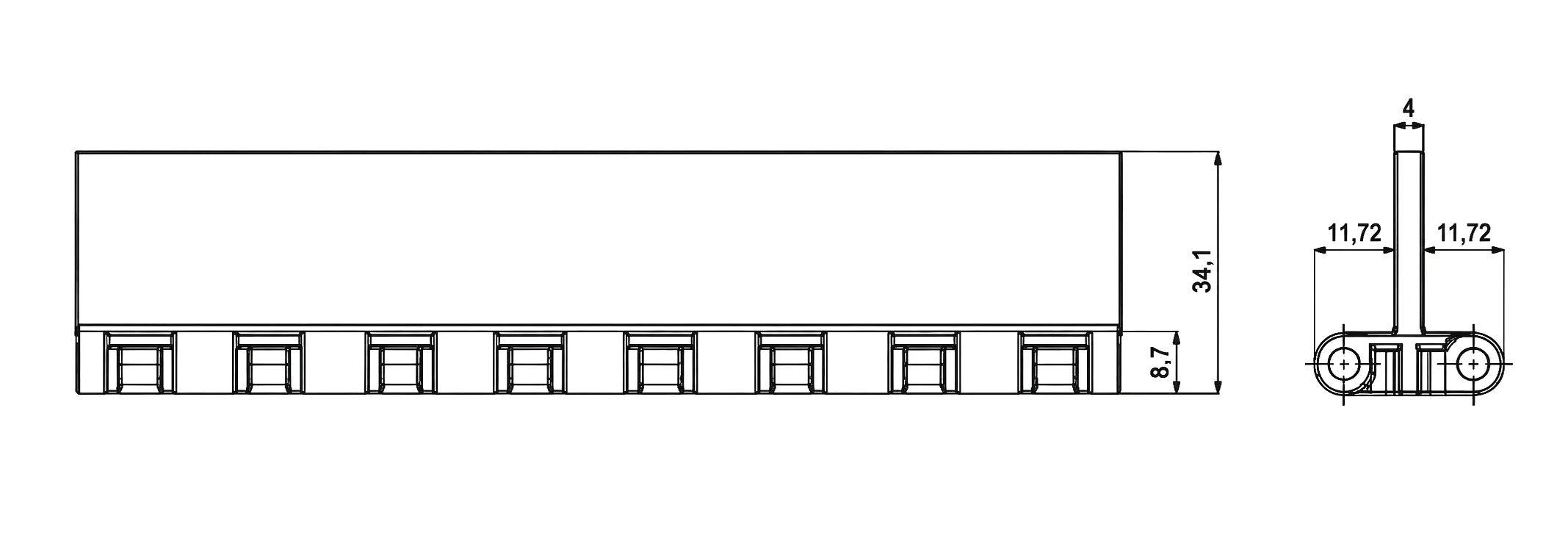

Technical Specification
Model 5935-FT-DB · Flat Top Straight Run Belt with Side Guards
If a non-standard belt width is required, please contact our sales team. Custom widths are available on request.
Manufacturing Capability & Custom Belt Solutions
Our manufacturing facility operates precision injection-moulding lines with fully automated dimensional QC, producing plastic modular belt modules to tight interchangeability tolerances. What distinguishes our factory is the breadth of in-house customisation available — not just as a catalogue exercise, but as a genuine engineering service.
UK B2B clients regularly request modifications that go beyond catalogue options: non-standard guard heights to suit specific product profiles, co-moulded rubber inserts for slip resistance on inclined runs, customised module colour coding for food-safety zoning, and bespoke assembly widths to match legacy conveyor frames. Our applications engineering team works directly with plant engineers and procurement teams to define the correct specification before production commences — reducing the risk of costly mismatches at installation.
Custom Guard Height
Specify guard profile height to match your product dimensions — available beyond standard configurations.
Non-Standard Belt Width
Widths beyond the standard W=76.2×N assembly are achievable. Share your frame dimensions and we engineer the solution.
Alternative Materials
FDA-compliant grades, antistatic compounds, and metal-detectable thermoplastics available for specialist applications.
Colour Coding
Zone-coded colour modules for food-safety segregation — supporting HACCP implementation across multi-allergen production lines.
Customer Success Stories
Real outcomes from B2B clients across food, pharma, and logistics sectors
Food Processing
Lincolnshire Ready Meal Manufacturer — Tray Transfer Line Upgrade
A major ready-meal producer operating three manufacturing sites across Lincolnshire needed to replace failing POM flat-top belts on their tray-sealing infeed conveyors. The original belts were experiencing lateral product drift at speeds above 18 m/min, causing tray mis-seating and a reject rate of around 3.4%. After trialling the 5935-FT-DB with integrated side guards, the client achieved consistent tray alignment at speeds up to 24 m/min. Reject rates dropped to below 0.6% within the first four weeks of operation. Equally important, the flat top’s smooth XLG surface reduced cleaning time per shift by approximately 22 minutes — a meaningful saving across three-shift production schedules.
❝
We retrofit our bakery cooling conveyors with these belts after dealing with constant product jams using our old guide-rail setup. The moulded guards are rock solid and the flat surface keeps our biscuit packs in perfect alignment right through to the cartoning station. Lead time was tight and the team handled it well.
— Procurement Manager
Biscuit Manufacturer, West Yorkshire, UK
❝
We specified a non-standard width for our tablet bottling line — 228.6 mm to match our existing frame — and the team confirmed feasibility within 24 hours and delivered on schedule. The XLG material handles our IPA wipe-down routine without any surface degradation after eight months. Genuinely impressed.
— Engineering Lead
Pharmaceutical Packaging, Cambridgeshire, UK
❝
Our ambient fulfilment warehouse needed belts that could handle a range of carton weights without belt sag or product slippage. The 13,000 N load rating gave us the headroom we needed and the side guards stop lightweight polybags from drifting under the scanner. Pricing was competitive versus UK-stocked alternatives and support has been responsive.
— Operations Director
E-Commerce Fulfilment Centre, Milton Keynes, UK
