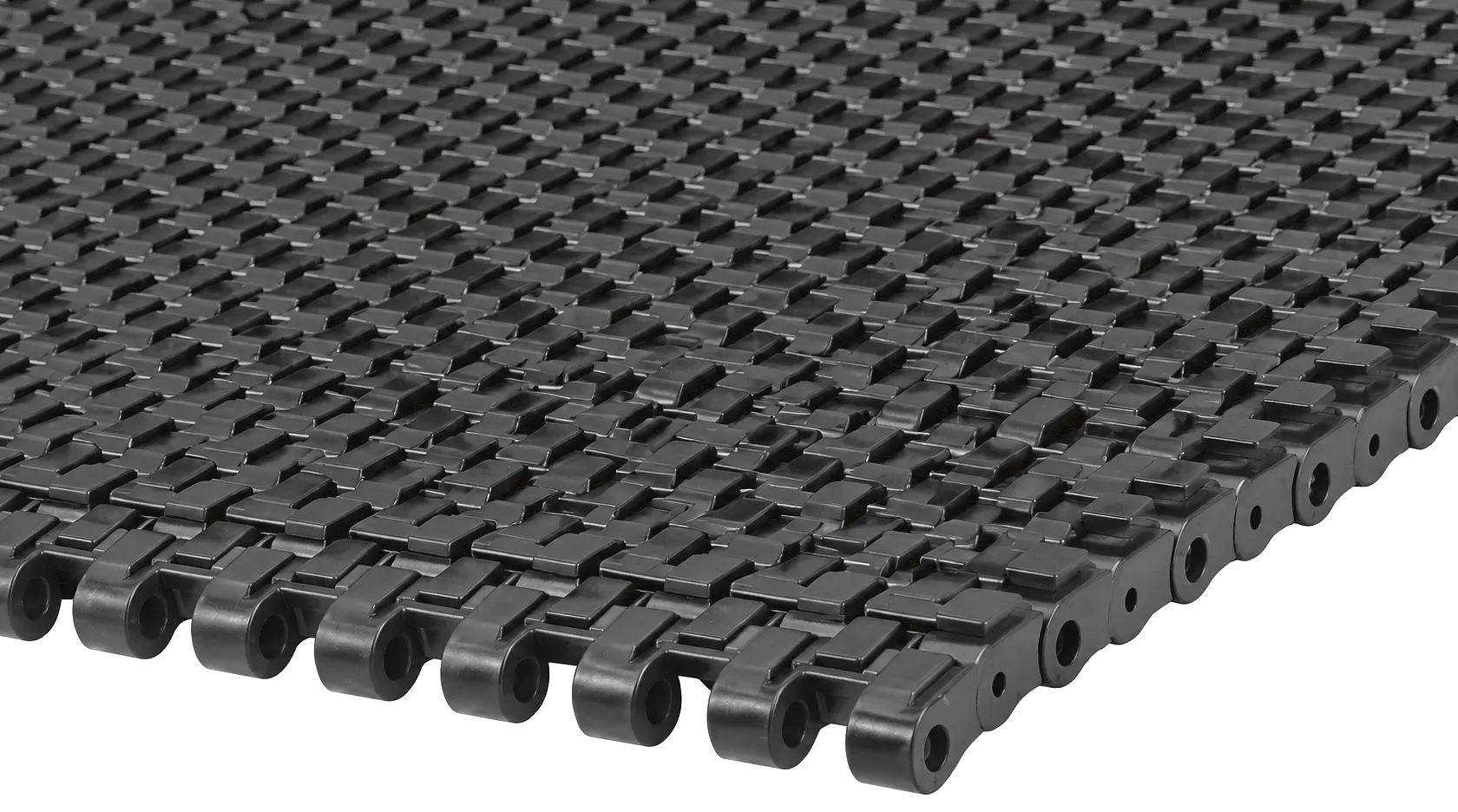

Rubber Top Grip Straight Run Conveyor Belt
Engineering-grade modular plastic conveyor belts with rubber-bonded grip surfaces — purpose-built for high-friction straight-run applications in UK food processing, packaging, and manufacturing environments.
Need a custom width, specific material grade, or a bulk supply quote for your UK facility? Our engineering team responds within one business day.
What Makes This Belt Different?
The 610-FT series rubber top grip straight run conveyor belt addresses one of the most persistent challenges in British industrial facilities: keeping products stable on inclines, through wash-down zones, and under variable load without resorting to clunky cleated alternatives. The belt achieves this through a co-moulded XLG or XP thermoplastic base fused directly with a TPE rubber grip surface — no adhesives, no delamination risk, no sudden product scatter mid-line.
Unlike woven fabric belts that absorb moisture and harbour bacteria, this modular plastic conveyor belt can be pressure-washed in place, passes standard hygiene audits, and meets UK food safety guidelines without requiring belt removal. With a 12.7 mm pitch and a minimum backflex radius of just 20 mm, it navigates compact conveyor frames common in constrained UK factory footprints — whether you’re running baked goods in Birmingham or bottled beverages in Bristol.
Key Performance Advantages
Co-Moulded Rubber Grip
TPE rubber is bonded directly into the module during manufacture. The grip surface will never peel or lift, even under heavy continuous throughput — a critical advantage over glued-on grip overlays still found in older conveyor systems.
Full Wash-Down Compatibility
Open-hinge modular construction allows cleaning fluids, steam, and high-pressure jets to pass through the belt surface freely. No pooling, no trapped residue. Compliant with BRC Global Standard requirements common in UK food manufacturing.
High Working Load Capacity
The XLG+TPE variant handles up to 14,000 N working load at 21°C — sufficient for heavy pallet-transfer lines and dense-product packaging operations. The XP+TPE option provides a lighter 10,000 N ceiling suited to lighter goods and quicker changeover needs.
Wide Operating Temperature
Rated from 4°C to 65°C in both dry and wet conditions, this belt moves comfortably from cold-store environments to oven-exit zones without material fatigue or grip degradation — a range that covers the majority of UK production scenarios.
Tool-Free Module Replacement
Individual modules can be snapped in and out without removing the entire belt from the frame. Maintenance teams across UK distribution centres report average replacement times under six minutes — significantly reducing costly production downtime.
Scalable Belt Width
Standard assembly widths follow the W=85*N formula, built from 85 mm module units. This makes width customisation straightforward for bespoke conveyor frames. Non-standard widths are available — contact our sales team for a tailored configuration.
Materials, Construction & Operating Principles
The 610-FT rubber top grip straight run conveyor belt is built on a dual-material philosophy. The structural base — available in XLG (Extra Light Grade engineering polymer) or XP (Extra Performance polymer) — provides the mechanical backbone: resistance to chemical attack, dimensional stability under load, and the long fatigue life that high-cycle production lines demand. Bonded to this base during the moulding process is a TPE (Thermoplastic Elastomer) rubber grip layer that delivers the friction interface between belt and product.
TPE was selected over natural rubber because it combines genuine elastomeric grip with thermoplastic processability — meaning the grip surface can be integrated into the plastic moulding process without adhesives. It is also FDA-compliant in food-contact formulations, non-porous, and resistant to fats, mild acids, and cleaning chemicals commonly used in UK food and beverage plants.
The belt operates on the single-hinge straight-run principle: modules interlock along a common pivot rod, flexing only in the vertical plane. This makes it unsuitable for side-curving applications but delivers exceptionally smooth, low-vibration straight transport — ideal for fragile bakery products, filled containers, glass bottles, and pharmaceutical packaging where surface stability is non-negotiable.

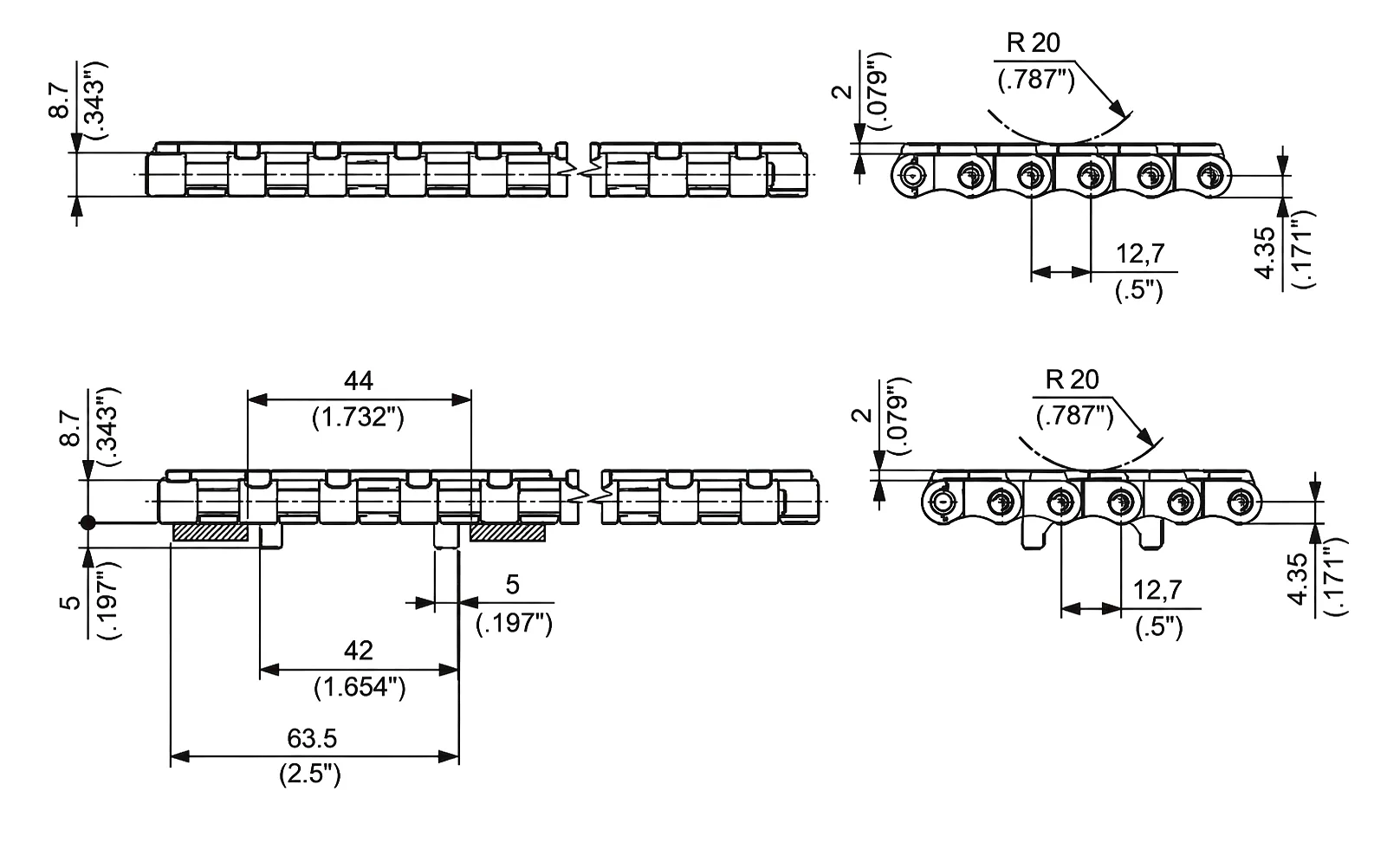

Technical Specifications
610-FT Series — Complete Parameter Table
* For non-standard belt widths, please contact our sales team at [email protected]
Related Modular Chain Products
For operations requiring lateral movement or roller-assisted transport, the following chain belt systems complement the 610-FT straight-run range and are frequently used in parallel within the same UK production line:
1060 Magnetic Side-Flexing Single Hinge Chain
A magnetic-assisted side-flexing modular chain for curved transfer sections. Ideal for connecting straight-run zones with accumulation or divert conveyors. Used widely in UK beverage and canning lines.
821 Heavy Duty Sideflex Run Single Hinge Roller Chain
Built for heavy-load lateral transfer applications, this roller-equipped chain reduces friction and wear on long side-flex runs. Common in UK automotive parts handling and general warehouse sortation systems.
Customer Success in Practice
Real-world installations across UK and European industry sectors
United Kingdom · Food & Beverage
Result: 34% Reduction in Belt Downtime
Yorkshire Bakery Manufacturer Eliminates Grip-Surface Delamination
A mid-size artisan bread producer operating out of West Yorkshire had been running woven fabric belts with glued-on rubber grip strips across four production lines. During peak operation — particularly after the daily 70°C steam sterilisation cycle — the grip strips were peeling at the edges and causing product jams roughly twice per shift. The operations manager estimated this was costing the facility approximately 4.5 hours of recoverable production time per week across all lines.
After retrofitting all four conveyors with the 610-FT(FTDP)-SGS XLG+TPE belt in a W=510 configuration, delamination incidents dropped to zero within the first month. The co-moulded rubber surface held through repeated steam cycles without any surface separation. Overall belt-related downtime fell by 34% in the first quarter post-installation, and the facility has since standardised on the 610-FT series for all new lines.
“We’ve tested a lot of grip belts over the years and the rubber bonding on this one is genuinely different. Two seasons in and the surface is still performing exactly as it did on day one. Wash-down is a five-minute job now.”
“We supply frozen ready meals to major UK retailers and needed something that could handle -4°C environments reliably. These belts go from the blast chiller exit straight to the packing hall without any issues. Very pleased with the purchase.”
“Quick delivery to our South London warehouse and the technical team were brilliant at helping us size the belt correctly for our existing frame. The modular design means our maintenance guys can swap a section in minutes rather than waiting for a full belt replacement.”
Manufacturing Capability & Custom Solutions
Our production facility operates over 60 precision injection moulding machines with dedicated tooling for the 610-FT series. Every belt run is subject to dimensional inspection against master gauges, and grip surface adhesion is pull-tested under simulated operating load before dispatch. This is not contract manufacturing handed off to a third party — it is fully vertically integrated production with engineers on the floor who understand how these belts behave in real UK processing environments.
Our product customisation service covers non-standard belt widths (any W value achievable in 85 mm increments), custom module colour coding for allergen management in food plants, specialist TPE formulations for extreme temperature or chemical exposure, and laser-etched lot traceability markings for pharmaceutical and medical device customers. Tooling modifications for unique hinge rod diameters are also available on application — lead times depend on modification scope but typically range from three to six weeks for bespoke configurations.
Supplying UK Food, Pharma & Manufacturing Industries
We regularly supply modular plastic conveyor belts and rubber grip belt systems to production facilities across England, Scotland, and Wales. Key supply destinations include food manufacturing clusters in the West Midlands, Greater Manchester, and West Yorkshire; pharmaceutical packaging hubs in Hertfordshire and Cambridgeshire; and distribution centres serving major UK retailers across the M4 corridor and Scotland’s central belt. Delivery lead times to UK ports typically run six to twelve working days for standard stock sizes, with express freight options available for urgent replacement requirements.
UK procurement teams appreciate the GBP quotations available on request, the CE-compatible design documentation provided as standard, and the ability to source spare modules separately from full belt replacements — a critical factor for multi-line facilities managing tight maintenance budgets. We are experienced working within UK buyer frameworks, including approved supplier list processes for large food retailers and NHS supply chain requirements for pharmaceutical customers.
Frequently Asked Questions
What is the best rubber top grip modular conveyor belt for food processing facilities in the UK?
The 610-FT series rubber top grip straight run conveyor belt with XLG+TPE material combination is widely used in UK food processing. It meets wash-down requirements, operates from 4°C to 65°C, and the co-moulded TPE grip surface is compatible with direct food contact applications. Its 12.7 mm pitch allows smooth, low-vibration straight transport of delicate baked goods, dairy products, and filled containers.
How much does a rubber grip modular plastic conveyor belt cost, and can I get a price for a UK bakery line?
Pricing depends on belt width (W=85*N formula), material grade (XLG or XP), and total belt length. Contact our sales team at [email protected] for a GBP-denominated quote tailored to your bakery conveyor specifications. We can include volume pricing for multiple production lines.
Which belt material is better for wet wash-down environments in UK pharmaceutical packaging — XLG or XP?
Both variants handle wet wash-down. XLG+TPE offers a higher working load of 14,000 N and weighs 10.5 kg/m² — better for heavier pharmaceutical packaging lines. XP+TPE is lighter at 7.5 kg/m² with a 10,000 N ceiling, preferred where belt weight affects drive motor specifications or where the lighter grade meets load requirements adequately.
Where can I find a reliable supplier of modular plastic conveyor belts with rubber grip surfaces for a UK food manufacturer?
Plastic-modular-belt.com supplies the 610-FT rubber top grip series directly to UK food manufacturers with standard delivery in 6–12 working days to UK ports. We provide GBP quotations, CE-compatible documentation, and can supply individual replacement modules alongside full belt runs to minimise stocking complexity for multi-line facilities.
How do I calculate the correct width for a rubber top grip conveyor belt to fit my existing UK production line conveyor frame?
The 610-FT belt uses the formula W=85*N, where N is the number of 85 mm module units across the belt width. A 6-unit belt gives W=510 mm, an 8-unit gives W=680 mm, and so on. For frames that don’t align with the 85 mm grid, contact our engineering team for a non-standard width option.
When should I replace individual modules on my rubber grip plastic modular belt rather than ordering a whole new belt?
Module-level replacement is recommended when wear or damage is localised. The single-hinge design allows a damaged section to be swapped out in under six minutes without removing the belt from the frame. Full belt replacement becomes necessary only when structural fatigue or grip degradation affects more than 20–25% of the total module count.
Ready to Spec the Right Belt for Your UK Line?
Send us your conveyor frame dimensions, throughput requirements, and wash-down schedule. We’ll recommend the right 610-FT configuration and send a GBP quotation within one business day.
