Description
Plastic Modular Belt / Straight Run Series

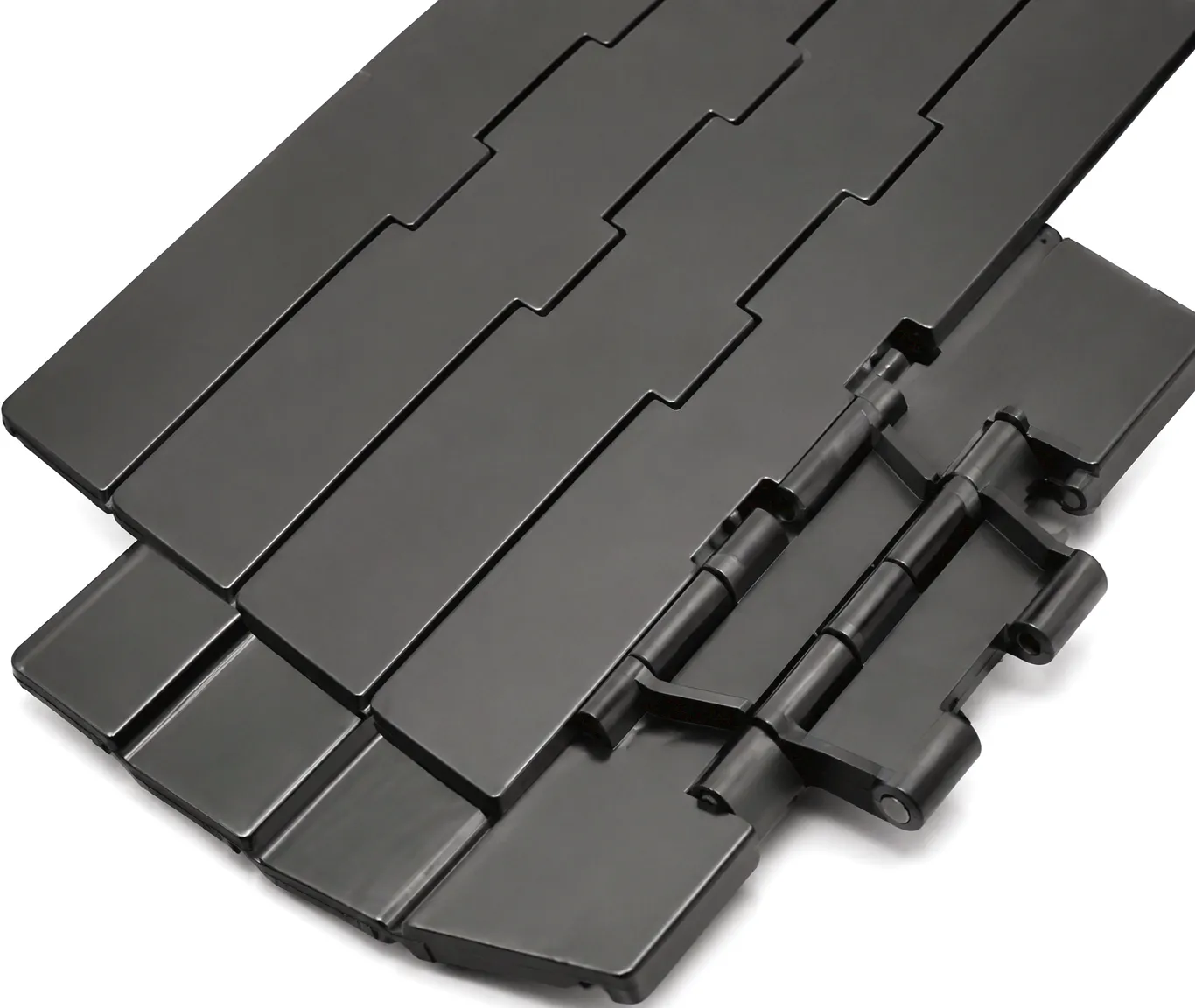

821 Straight Run Double Hinge Chain — Industrial-Grade Conveyor Solutions for UK Manufacturers
Engineered for demanding straight-run conveyor applications, the EP 821 Straight Run Double Hinge Chain delivers outstanding load stability, chemical resistance, and long service life — purpose-built for food processing, logistics, and manufacturing industries across the United Kingdom.
What Makes the 821 Straight Run Double Hinge Chain Stand Out?
The 821 Straight Run Double Hinge Chain is a precision-engineered plastic modular belt designed for applications where reliable, stable conveying in a straight direction is non-negotiable. With a 38.1 mm pitch and a minimum backflex radius of just 40 mm, this belt provides exceptional tracking performance across a wide range of conveying speeds and product weights. The double hinge design distributes tension evenly across the belt width, significantly reducing the risk of premature wear and hinge fatigue — a critical advantage for round-the-clock production environments found in UK beverage plants, packaging halls, and logistics sorting centres.
Available in three standard widths — 821-K750 (190.5 mm), 821-K1000 (254 mm), and 821-K1200 (304.8 mm) — and offered in both XLG and PS material grades, the belt adapts to diverse process requirements without compromising on dimensional accuracy. Whether you are upgrading legacy stainless-steel chain systems or specifying for a new-build automated line, the 821 series represents a technically sound, cost-effective choice for British industrial buyers who demand measurable performance gains over conventional conveyor belts.
Core Advantages for UK Industrial Buyers
Double Hinge Stability
Two hinge rods per module joint distribute belt tension uniformly, drastically reducing localized stress and extending the service interval on high-throughput lines.
Food-Safe Material Options
XLG and PS grades are both formulated for washdown environments. PS material is particularly suited to UK food and beverage processing lines that require frequent CIP cleaning cycles.
Wide Temperature Range
Operates reliably from 4 °C to 64 °C in both dry and wet conditions, making it equally at home in chilled distribution warehouses and ambient packaging environments across the UK.
High Max Working Load
Each belt variant supports up to 2,750 N working load at 21 °C, making the 821 series appropriate for medium-to-heavy product conveying without belt distortion or hinge failure.
Tool-Free Maintenance
The modular construction enables individual modules or hinge rods to be replaced on-site without special tools, cutting planned maintenance windows and reducing unplanned downtime costs.
Multiple Width Variants
Three factory-standard widths (190.5 mm / 254 mm / 304.8 mm) cover most standard conveyor frame widths used by UK OEMs and system integrators, simplifying project specification.
Materials, Working Principle & Application Environments
▶ How the Double Hinge Design Works
Unlike single-hinge modular belt designs, the 821 series uses two parallel hinge rods spanning the full width of each module joint. This configuration effectively halves the bending stress on each individual rod, improving fatigue resistance in applications where the belt operates over smaller-diameter drive sprockets or reverses direction over return rollers. The straight-run geometry keeps all load vectors aligned with the direction of travel, eliminating the lateral stress components that accelerate wear in side-flexing chain designs. The result is a belt that maintains consistent pitch accuracy over thousands of operating hours — important for applications using belt-mounted fixtures or precision positioning systems.
▶ Material Grades Explained
XLG (Extra Life Grade) — A specially compounded polypropylene or acetal variant with enhanced UV and chemical resistance. XLG is the preferred choice for industrial sectors handling cleaning agents, acidic washdowns, or moderate exposure to oils and lubricants. It offers a balance of rigidity and impact resistance that makes it widely used in general manufacturing, automotive parts conveying, and postal/logistics sorting systems across the Midlands and northern England.
PS (Polystyrene Blend) — Optimised for food contact environments and cost-sensitive projects. PS grade complies with relevant food-contact material standards and is easier to inspect for contamination due to its smooth surface finish. It is commonly specified in poultry processing, ready-meal packaging, and fresh produce conveying lines operating under UK Food Standards Agency compliance requirements.
▶ Typical Application Scenarios in the UK Market
Pharmaceutical Packaging
Logistics & E-commerce Fulfilment
Automotive Parts Assembly
Fresh Produce & Cold Chain
Postal Sorting & Courier Networks
The 821 plastic modular belt is at its best where straight-through product flow must be maintained without lateral drift, and where hygiene or chemical exposure rules out metal chain. Its compact pitch (38.1 mm) provides a smooth, closely supported surface ideal for small or irregular products such as pouches, blister packs, and loose components in trays — all common challenges on UK manufacturing and fulfilment lines.
Technical Specification
All data measured at standard conditions. Belt working load values stated at 21 °C.

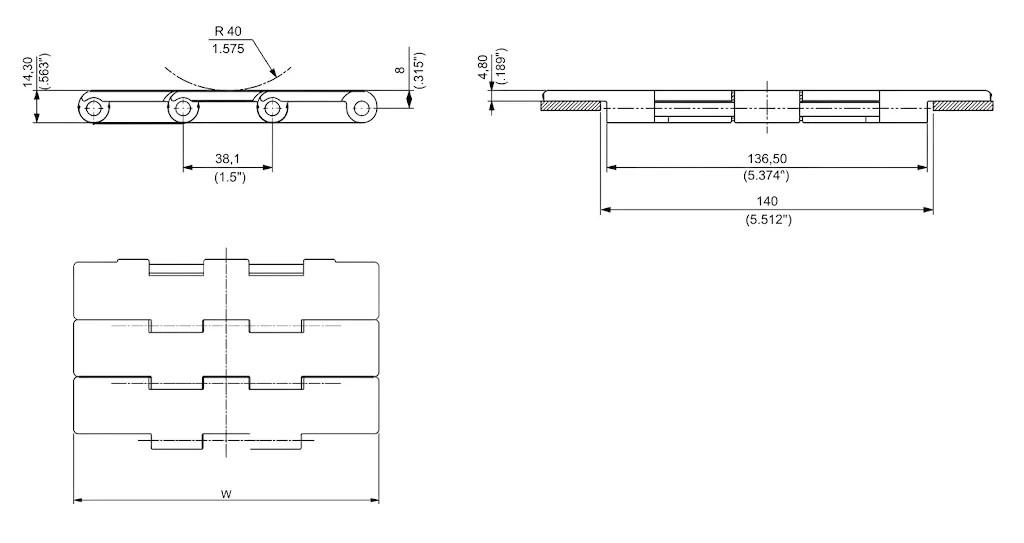

Technical drawing — dimensional reference for the 821 Double Hinge Chain (all annotated dimensions per standard series)
Customer Success Stories
Real applications from food and logistics industries across the United Kingdom and Europe.
Yorkshire Ready-Meal Producer — PS Grade 821-K1000
A leading ready-meal manufacturer based in West Yorkshire was experiencing accelerated wear on their stainless-steel chain conveyor in a production environment that required twice-daily CIP (clean-in-place) hot-water washdowns at 60 °C. After switching to the 821-K1000 in PS material, they recorded a 38% reduction in conveyor maintenance time over the first six months of operation. The belt’s resistance to high-pH cleaning agents and its smooth surface — which resisted food residue adhesion — simplified line compliance with the retailer hygiene audit requirements. The system has now been running for 27 months without a hinge rod replacement.
“We fitted the 821-K750 XLG across four packaging lines at our Coventry distribution centre. Load capacity is exactly as stated and the belt tracking has been flawless. Lead time from order to delivery was 12 days — better than any domestic supplier we had tried.”
— Operations Manager, Automotive Components Distributor, Coventry, UK
“Our poultry processing plant in County Tyrone runs in wet, cold conditions almost continuously. The 821 PS grade handles the environment without any sign of corrosion or brittleness. We’ve compared it to other modular belt suppliers and the hinge durability is noticeably better. Highly recommended for cold, wet UK food sites.”
— Maintenance Engineer, Poultry Processing Facility, Northern Ireland, UK
“As a conveyor systems integrator based in the East Midlands, we’ve been specifying the 821 series into customer projects for over two years. The dimensional consistency between batches is excellent and the technical data sheet is accurate. Our customers appreciate the tool-free module replacement — it reduces their on-call engineer callouts significantly.”
— Senior Applications Engineer, Conveyor OEM, East Midlands, UK
Factory-Direct Supply & Custom Engineering
Dedicated Production Facility
Our plastic modular belt manufacturing facility runs dedicated moulding lines for the 821 series, ensuring consistent module geometry batch after batch — no dimensional drift over long production runs.
Custom Width & Perforation Options
Beyond the standard K750/K1000/K1200 widths, we manufacture bespoke belt widths and surface configurations — including perforated, raised-rib, and cleated variants — to your CAD drawing or dimensional specification.
Colour-Coded & Traceability Options
We supply the 821 belt in blue, white, and grey as standard for food-sector colour-coding protocols. Metal-detectable (MD) compounding is available on request for manufacturers operating under HACCP programmes.
Direct Export to United Kingdom
We have established shipping and customs documentation procedures for UK importers, including commercial invoices, packing lists, and certificate of origin. Delivery to UK ports typically within 18–22 working days from order confirmation.
Looking for a bespoke 821 plastic modular belt solution for your UK production line?
Explore Related Plastic Modular Belt Products
Side-flexing chain alternatives for curved conveyor layouts and routing applications.
SIDE-FLEXING
1060 Magnetic Side-Flexing Single Hinge Chain
Magnetic drive side-flexing chain for curved conveyor paths. Ideal for routing products around bends without the use of guide rails, reducing product contact marks in delicate applications.
View Product →
SIDE-FLEXING
1050 Magnetic Side-Flexing Single Hinge Chain
Compact magnetic side-flexing design suited to tighter curve radii. Commonly specified for beverage can conveying, bottle handling, and any layout where floor space constraints demand tight radius turns.
View Product →
Frequently Asked Questions
Common questions from UK procurement engineers, conveyor OEMs, and plant maintenance teams.
What is the price of the 821 Straight Run Double Hinge Chain for a UK food processing plant, and how do I get a quote?
Pricing for the 821 plastic modular belt series depends on belt width variant (K750, K1000, K1200), material grade (XLG or PS), quantity required, and any customisation such as colour or metal-detectability. To receive an accurate cost for your specific UK food processing application, email your conveyor frame dimensions, required belt length, and operating conditions to [email protected]. We typically return a formal quotation within one business day.
Which material grade of the 821 modular belt — XLG or PS — is better suited to wet food conveying environments in the UK?
For wet food conveying — including raw poultry, fish, fresh produce, and ready meals — the PS (polystyrene blend) grade is generally the preferred specification. It offers a smooth, easily cleaned surface that minimises bacterial harborage, resists high-pH cleaning agents commonly used in UK food factories, and performs consistently across the 4–64 °C working temperature range. XLG is better suited to environments involving chemical exposure, UV, or oil contamination, such as automotive and general industrial applications.
How does the 821 double hinge design improve belt life compared to a single hinge plastic modular belt in a high-load UK logistics application?
In high-throughput logistics sorting environments — such as those at major UK parcel carrier hubs — conveyor belts experience repeated flexing cycles as they traverse drive and return sprockets. A single hinge pin carries the entire bending load at each module joint, concentrating stress in one location. The 821’s double hinge configuration distributes this stress across two rods, effectively halving the load per rod. Over a twelve-month operational period, this translates to significantly extended hinge rod life, fewer emergency belt replacements, and reduced total cost of ownership for logistics operations running continuous shifts.
Where can I find a reliable supplier of the 821 plastic modular belt for conveyor systems installed across multiple UK manufacturing sites?
Ever-Power supplies the 821 Straight Run Double Hinge Chain directly to UK buyers through international factory-direct export. We handle all commercial documentation — packing lists, certificates of origin, and customs declarations — to simplify import for UK procurement teams. For multi-site manufacturing operations with standardised belt specifications, we can arrange scheduled supply agreements to maintain consistent stock at your UK distribution or engineering stores location.
When should I choose the 821 straight run modular belt over a side-flexing chain for my UK packaging line layout?
The 821 straight run double hinge chain is the optimal choice when your conveyor runs in a single direction without curves or lateral deflection — for example, a linear infeed, transfer, or accumulation section. If your line layout requires the belt to navigate bends or radius turns between conveyor sections, a side-flexing plastic modular chain (such as our 1060 Magnetic Side-Flexing Single Hinge Chain or 1050 Magnetic Side-Flexing Single Hinge Chain) would be more appropriate. The straight-run geometry of the 821 series provides superior load capacity and tracking precision on linear runs compared to side-flexing alternatives.
What customisation options are available for the 821 modular belt if our UK pharmaceutical production line requires non-standard specifications?
For UK pharmaceutical and healthcare production environments with non-standard requirements, we offer custom belt widths beyond the standard K750/K1000/K1200 range, metal-detectable (MD) material compounding for HACCP compliance, FDA-grade material certifications on request, perforated module surfaces for air-knife drying sections, and dedicated colour options for zone-coding protocols. All customisation requests are assessed by our applications engineering team — contact us with your GMP requirements and line layout and we will advise on feasibility and lead time.
